Technical coating systems for Oil & Gas
Epoxy-based systems for the gasproofing, waterproofing and interior protection of concrete and steel tanks, reservoirs and structures, resistant to all types of hydrocarbons.
Designed for the waterproofing and protection of storage facilities of all types of hydrocarbons :
- Oil tanks (refineries , civilian and military storage depots, oil rigs, civilian and military airports, …)
- Onshore LNG storage tanks as well as underground gas-station tanks.
Used in both new-build and rehabilitation projects.
PETROPERL® is designed to provide long-term protection against corrosion of mainly steel tanks
and reservoirs, but applies also to concrete storage.
It is compatible with all grades of petrol, including Jet Fuel, except ethanol-containing.
In this last case, NAPHTOPERL® or CARBOPERL® must be used.
GAZOPERL® serves as a vapor-barrier system on concrete onshore LNG storage facilities.
Generally, these systems are applied as single-layer anti-corrosion systems on steel that has been blasted to the proper roughness and primed, but they are also applied as multi-layer, glass-fiber-reinforced systems where excessive corrosion of the steel has occurred.
Combined with a honeycomb glass layer (called « 3D »), they are also used in leak-detecting waterproofing systems, in accordance with current European legislation on the waterproofing of buried, hydrocarbon storage facilities.

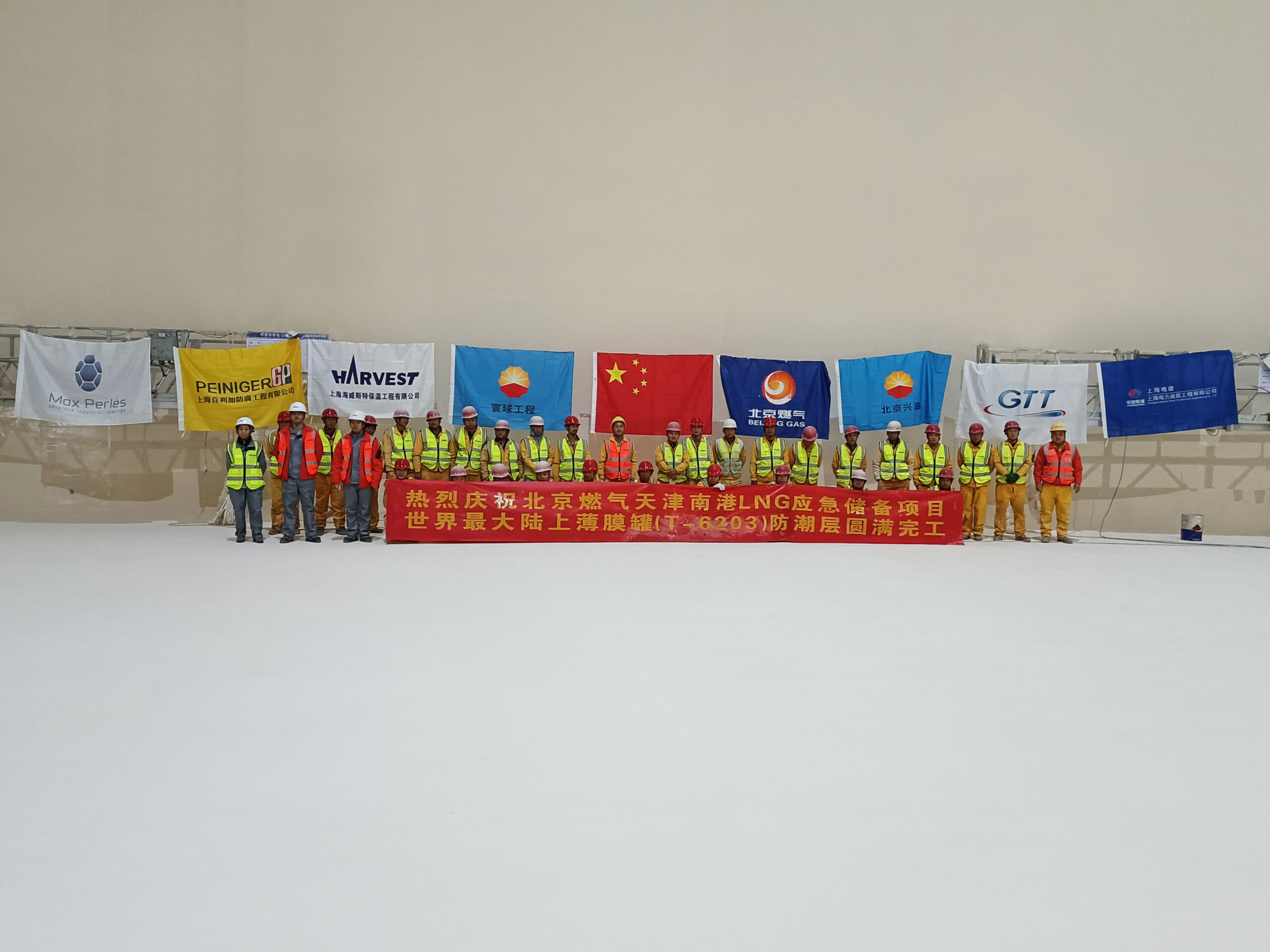

Vapour barrier system application in a liquefied natural gas (LNG) storage tank
GAZOPERL® vapor barrier coating
220.000 m3 concrete tank
LNG storage tank, Tianjin, Chine, 2021

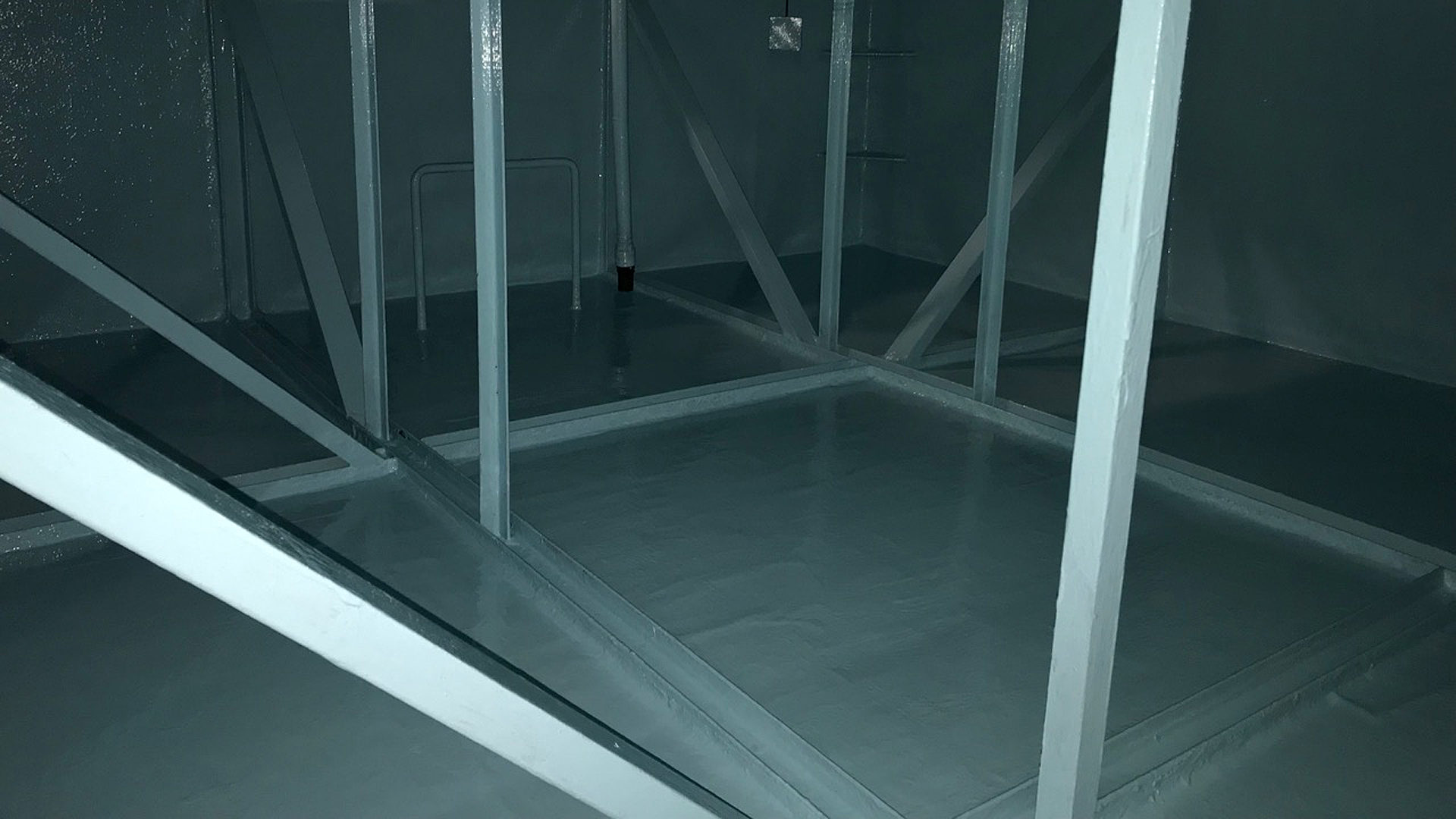

Internal waterproofing and protection of a steel tank containing engine oil
Leak detection NAPHTOPERL® + 3D FABRIC + PETROPERL® system
The “3D” double-shell epoxy coating was applied for a 23 m3 diesel engine oil steel tank waterproofing
It consists of a NAPHTOPERL® epoxy laminate reinforced with a 600 g/m² glass mat, a “3D” fabric for leak detection and an epoxy finish PETROPERL® T
SNCF – Technicentre Chambéry (73), 2019

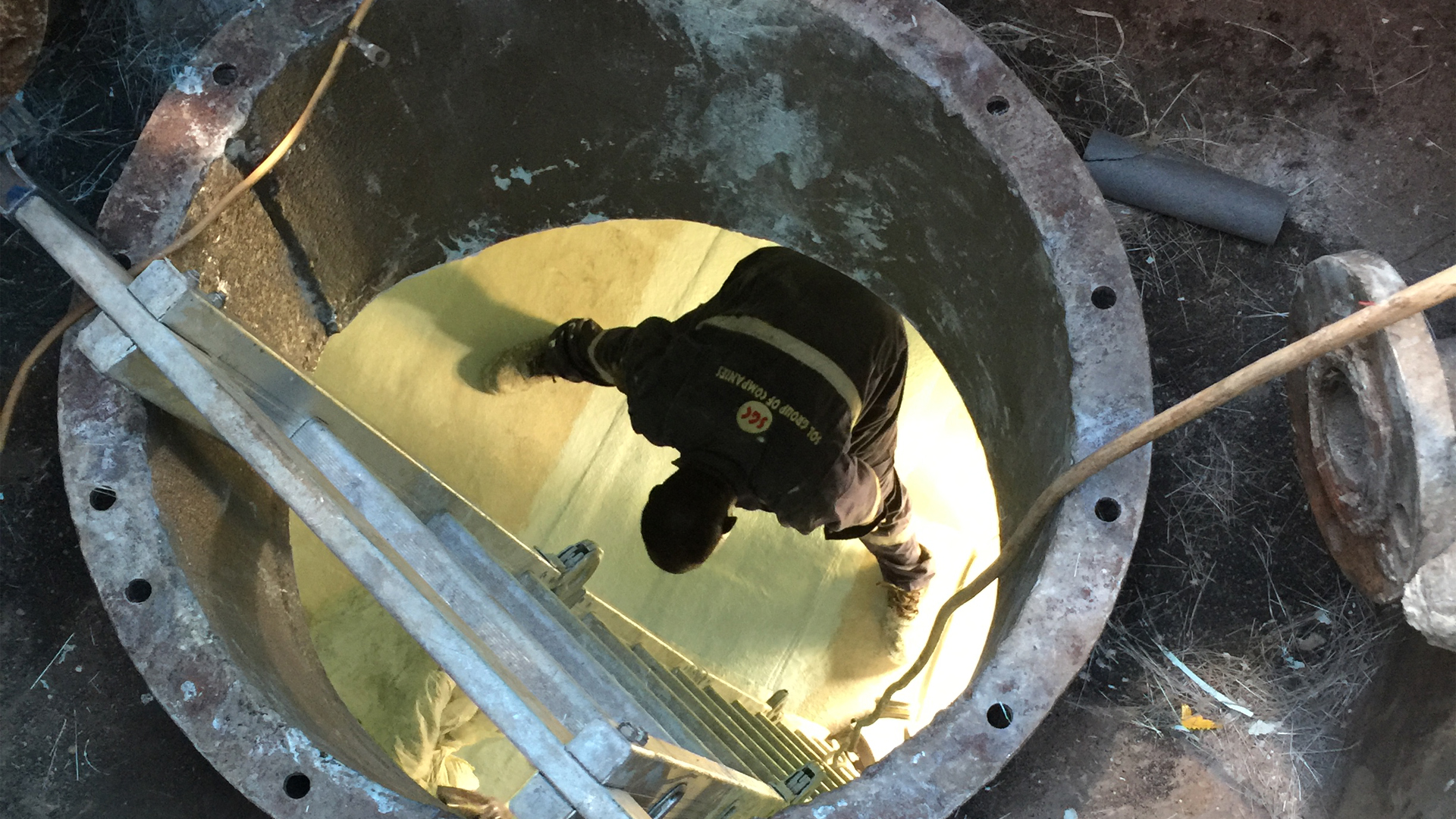

Undergrounded service station tanks rehabilitation
PETROPERL® + NAPHTOPERL® system, compatible with bio-fuels
This system allows undergrounded service station tanks rehabilitation, making them waterproof in the long term
View from the outside
Undergrounded tanks of Total service stations, Kampala, Ouganda, 2018

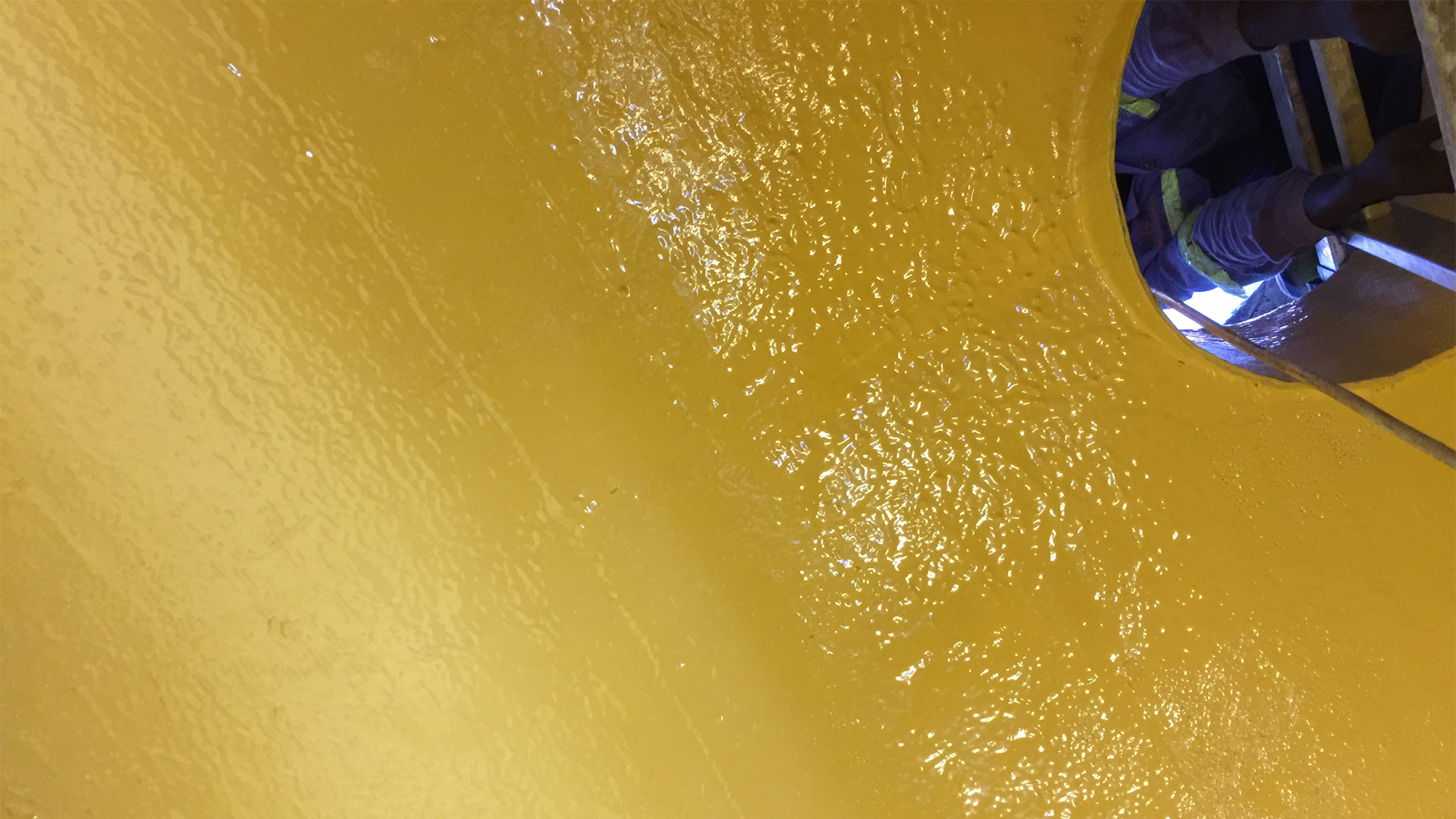

Undergrounded service station tanks rehabilitation
PETROPERL® + NAPHTOPERL® system, compatible with bio-fuels
This system allows undergrounded service station tanks rehabilitation, making them waterproof in the long term
View from the inside
Undergrounded tanks of Total service stations, Kampala, Ouganda, 2018

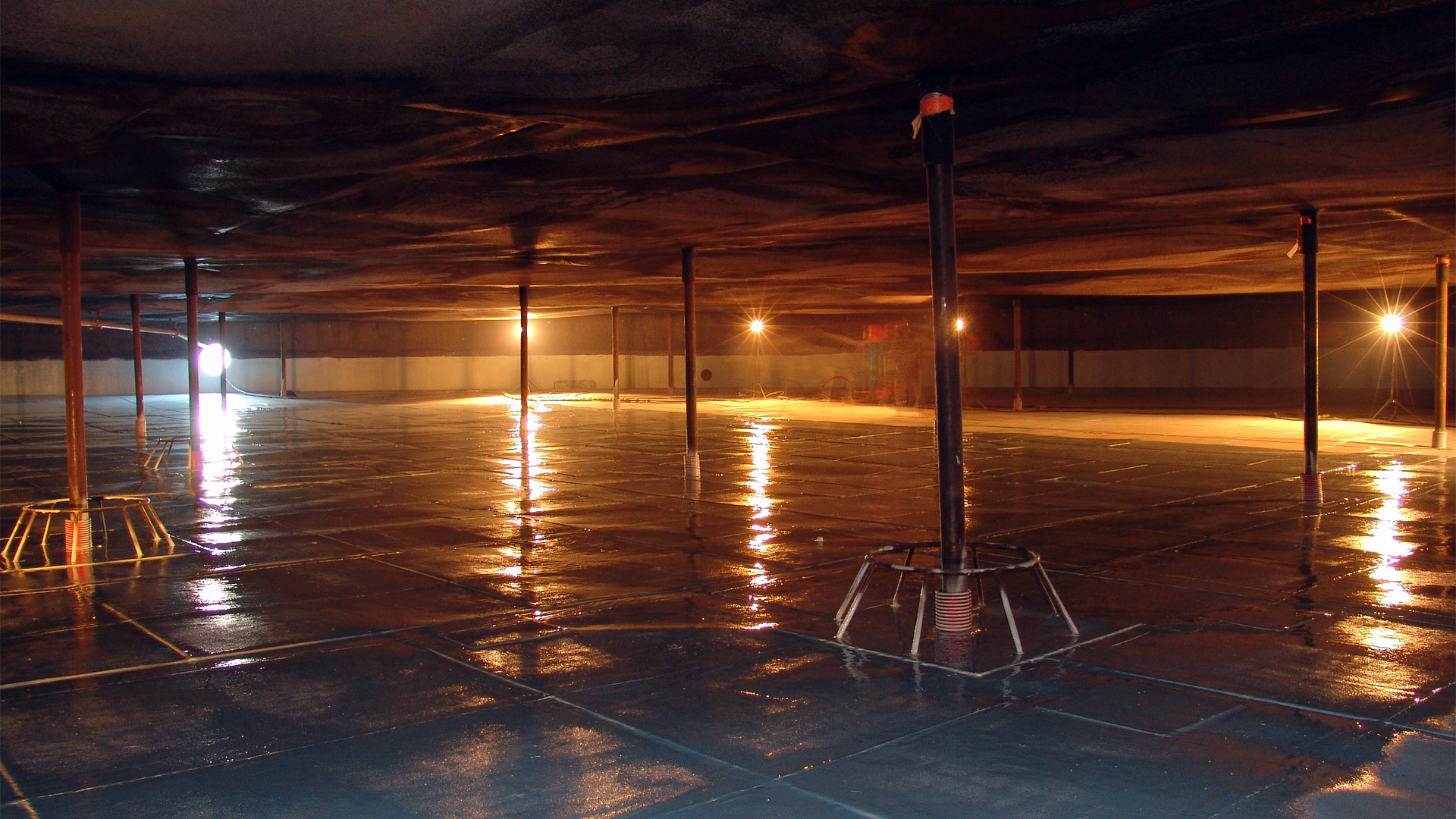

Oil tanks internal waterproofing and protection : bottom and dress coating
Petroleum tanks containing hydrocarbons protected and sealed by PETROPERL® epoxy laminate coatings
Compagnie Industrielle Maritime (CIM), Le Havre (76), 2003 to 2015
